TSRVCBoxItem, TSRVLBoxItem

TSRVCBoxItem is a type of item for collection of items of TSRVComboBox.

TSRVLBoxItem is a type of item for collection of items of TSRVListBox.

Unit SRVTypeItems;

Syntax

TSRVCBoxItem = class(TCollectionItem);

TSRVLBoxItem = class(TSRVCBoxItem);

Hierarchy

TObject

TPersistent

TCollectionItem

Properties of TSRVCBoxItem

Published properties

Property	Type	Default value	Meaning
AlignImage	TLRAlignment	tlraLeftJustify	Specifies the position of image relative to Caption. RTL BiDiMode inverts value of this property.
Alignment	TAlignment	taLeftJustify	Specifies the horizontal alignment of content inside the item. RTL BiDiMode inverts value of this property.
BackColor	TColor	clWindow	Background color.
Caption	TRVUnicodeString		Specifies the text value of the item. Can be hidden, see Options.
Color	TColor	clWindowText	Text color for Caption.
Enabled	Boolean	True	Controls whether the item can be selected.
Expanded	Boolean	True	Specifies whether the item is expanded (children are visible)
FontName	TFontName	'Tahoma'	Font name for displaying Caption. Used only if UseItemFontNames=True for the parent control.
Hint	String		Reserved
ImageIndex	Integer	-1	Identifies the image associated with this item. ImageIndex is an index into the ImageList property of the parent control. When the item is selected, the item displays the image specified by the SelectedImageIndex property instead, if that property is assigned. Can be hidden, see Options.
Indent	TRVPixel96Length	0	Defines both the indent from the left side to the item content, and the level of the item in the items hierarchy. Items with greater Indent are children of the preceding item with smaller Indent.
Options	TSRVItemOptions	[srvioShowCheckBox, srvioShowImage, srvioShowText, srvioCanSelect, srvioCanHaveChildren]	Item options (see below)
SkinSchemeIndex	Integer	-1	Index in the SkinManager.CurrentSkin.BoxSchemes (SkinManager is a property of the parent control). Defines a visual appearance of the item. If equals to -1, ItemSkinSchemeIndex property of the parent control is used.
SelectedImageIndex	Integer	-1	Identifies the image associated with this item when it is selected. SelectedImageIndex is an index into the ImageList property of the parent control. If it equals to -1, ImageIndex property is used instead. Can be hidden, see Options. Can be also used for highlighted (under the mouse pointer) items, if see UseSelectedImagesInHotState of TSRVListBox and TSRVComboBox.
Style	TFontStyles	[]	Font styles to display Caption.
Tag	Integer	0	Stores an integer value as part of the item.

type

TLRAlignment = (tlraLeftJustify, tlraRightJustify);

TSRVItemOption = (srvioShowCheckBox, srvioShowImage, srvioShowText,

srvioCanSelect, srvioCanHaveChildren);

TSRVItemOptions = set of TSRVItemOption;

Options can include the following values:

•srvioShowCheckBox: if excluded, a check box for this item is not shown (check boxes are shown only if ShowCheckBoxes property of the parent control is True); this option is ignored for combo boxes, it is used only in list boxes;

•srvioShowImage: shows the image specified in ImageIndex and SelectedImageIndex;

•srvioShowText: shows Caption;

•srvioCanSelect: allows this item to be selected; similar to Enabled, but does not provide a visual indication;

•srvioCanHaveChildren: allows this item to have children; if excluded, subsequent items are not treated as its children, even if they have greater Indents;

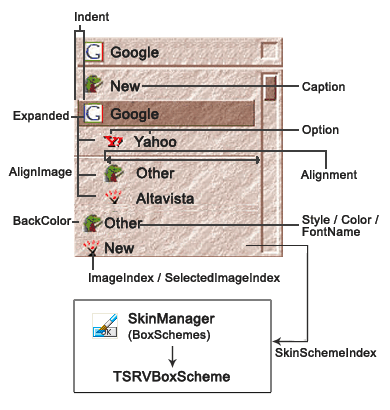

SRVComboBox Item Scheme

Properties of TSRVLBoxItem

In addition to the properties inherited from TSRVCBoxItem, TSRVLBoxItem has the following published properties:

Property	Type	Default value	Meaning
AlignCheckBox	TLRAlignment	tlraLeftJustify	Specifies the position of checkbox relative to Caption and image. RTL BiDiMode inverts value of this property.
Checked	Boolean	False	Specifies whether the check box is checked. See also State property.
State	TCheckBoxState	cbUnchecked	Indicates whether the check box is selected (cbChecked), deselected (cbUnchecked), or grayed (cbGrayed)

Property

Type

Default value

Meaning

AlignCheckBox

TLRAlignment

tlraLeftJustify

Specifies the position of checkbox relative to Caption and image.

RTL BiDiMode inverts value of this property.

Checked

Boolean

False

Specifies whether the check box is checked. See also State property.

State

TCheckBoxState

cbUnchecked

Indicates whether the check box is selected (cbChecked), deselected (cbUnchecked), or grayed (cbGrayed)

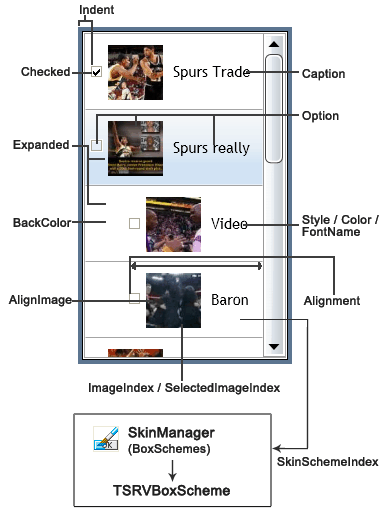

SRVListBox Item Scheme
