TRVCamView.ShowCaption, CaptionParts, Title, CaptionColor, CaptionFont [VCL], CaptionTextSettings [FMX], CaptionHeight

The properties define how the window caption is displayed.

type // defined in MRVType unit

  TRVCameraCaptionPart = (rvccpAddress, rvccpAlias, rvccpDate, rvccpTime);

  TRVCameraCaptionParts = set of TRVCameraCaptionPart;

property ShowCaption: Boolean;

property Title: String;

property CaptionParts: TRVCameraCaptionParts;

property CaptionColor: TRVMColor;

property CaptionHeight: Integer;

VCL and LCL:

property CaptionFont: TFont;

FMX:

property CaptionTextSettings: TTextSettings;

A caption is displayed if ShowCaption=True. Its background is painted with CaptionColor. When activating Delphi XE2+ styles, system colors are changed to the corresponding style colors.

CaptionColor is also used for drawing a frame around the whole window.

[FMX note]: CaptionColor can be semi-transparent. In this case, video area is extended to the caption area, and caption is drawn above video.

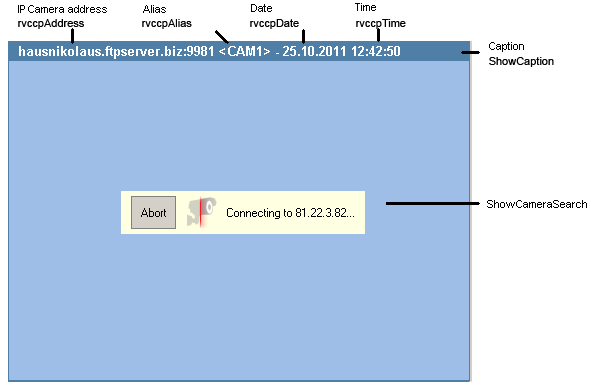

The caption's text is drawn using CaptionFont and consists of Title and additional information specified in CaptionParts:

Value

Meaning

rvccpAddress

IP camera address

rvccpAlias

RVCamera.Parameters.Alias

rvccpDate

the current date

rvccpTime

the current time

The information specified in CaptionParts is shown only if VideoSource is TRVCamera.

rvcammultiview_screenshot

CaptionHeight defines the caption height in 96 DPI screen mode. When the screen DPI is different, the caption height is changed accordingly.

Default values

ShowCaption: True

Title: '' (empty string)

CaptionParts: [rvccpAddress, rvccpAlias]

CaptionHeight: 20

Default values [VCL and LCL]:

CaptionFont: Tahoma, 8

CaptionColor: $00A77E4F

Default values [FMX]:

CaptionColor: $FF4F7EA7
