TRichView is updated to version 19.6.
In this update:
Trial versions are available: https://www.trichview.com/download/
A full version can be found in the protected section of this forum (or old setups can check for updates and download new versions).
Since this update, FireMonkey version of TRichView supports the following platforms:
All features that TRichView supports in Windows are supported in macOS (including copying to the Pasteboard in multiple formats).

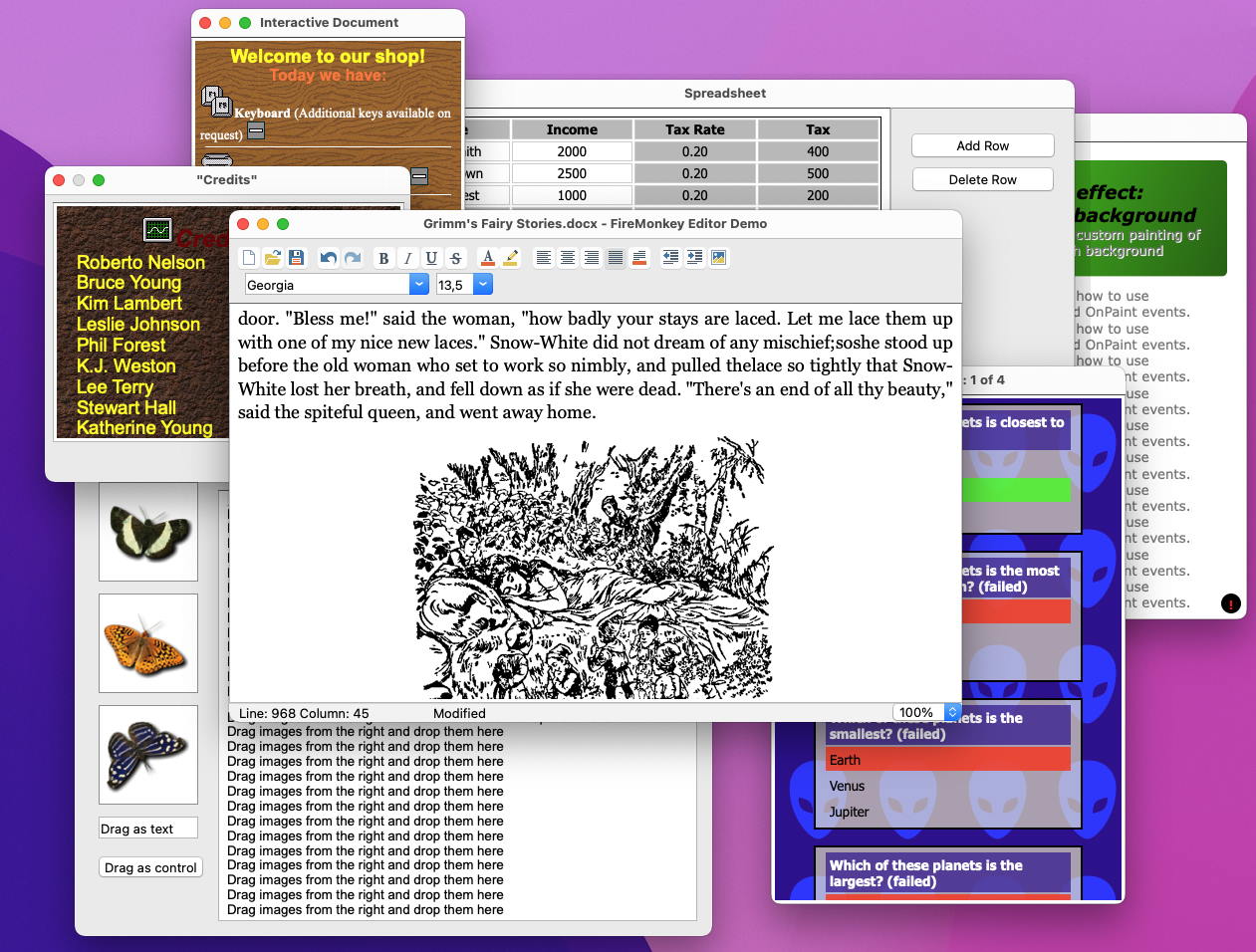

All TRichView demo projects were modified to support both Windows and macOS (a list of changes is posted in the forum for registered users).
RichViewActions (VCL/LCL user interface components for TRichView and ScaleRichView editors) have been supporting end-user help files from the beginning, but this feature was abandoned.
Now it is revived and improved.
Like before, this feature is activated if UseHelpFiles = True for the active TRVAControlPanel component.
A help file can be provided for each UI language. You can define a help file for the specific language using RVA_SetHelpFile procedure.
Alternatively, if TRVAControlPanel.UseDefaultHelpFile = True, RichViewActions use Application.HelpFile.
If UseHelpFiles = True, and a help file is defined, a “Help” button appears on all RichViewActions dialogs (or the user can press F1).
You can use either HelpContext (an integer identifier of a help topic) or HelpKeyword (a text keyword associated with a help topic), depending on TRVAControlPanel.HelpType.
A table of HelpContext and HelpKeyword values used in RichViewActions dialogs can be found in the help file.
Help files are supported not only in core RichViewActions dialogs, but also in ScaleRichView and ReportWorkshop dialogs.
A real help file is not provided, sorry. But there is a template that you can use as a base. It is in <TRichView Dir>\RichViewActions\End-User Help\ folder.
This help file contains topics for all RichViewActions dialog windows (including ReportWorkshop dialogs) with a very brief description of each dialog.
This help file was created using Help and Manual, its project is included.
A symbol font contains a set of glyphs specific for this font. Text formatted with such a font can be displayed properly only if this font is installed. Even if these fonts are common on Microsoft Windows computers, they can be missing on other platforms.
Symbol fonts should be avoided in favor of Unicode fonts.
A new property is added to TRichView.RTFReadProperties: ConvertSymbolFonts
The default value is False for VCL/LCL, and True for FireMonkey version.
If ConvertSymbolFonts = False, text of all symbol fonts is loaded as it is.
If ConvertSymbolFonts = True, characters of widely used symbol fonts are converted to the most similar Unicode characters.
Conversion of the following fonts is supported:
Since this version, TRichView does not use symbol fonts for bullets loaded from Markdown (Unicode characters are used instead)
In FireMonkey, printer’s DPI value (“dots per inch”) is not assigned by default, and the programmer must choose from the list of DPI supported by the printer.
Previously, if you print using TRVPrint component, and DPI is not chosen, TRVPrint auto-selected the first available DPI.
In this version, a new property is added: BestDPI. By default it is (600, 600). If DPI is not chosen, TRVPrint selects DPI that matches best with this value.
TRichView installer was improved in this update.
For Delphi & C++Builder packages, the installer supports Windows 32-bit, Windows 64-bit, macOS 64-bit, macOS ARM 64-bit platforms.
(If you choose an alternative C++Builder-only installation, still only Window 32-bit platform is supported)
For all platforms except for Windows 32-bit, the installer adds paths for precompiled files to RAD Studio library paths.
The older version of the installer always added paths to source files for Windows 32-bit platform.
For users who do not want to modify TRichView source code it is undesirable, because it increases a project compilation time (because TRichView units are recompiled with projects).
The new version of the installer provides an option for Windows 32-bit platform: path to source files / path to pre-compiled units.
You can see the “Options” button on the page of IDE selection.
I this dialog, they are discussed below.
If paths to pre-compiled files are added to IDE library paths, paths to source code are added to IDE browse paths, to simplify access to source code from RAD Studio IDE (for all supported platforms).
The installer shows a log of completed tasks.
Since this version, an additional text label describes the currently processed task with more details. For example, you can see which package is being compiled and for which platform.
The installation and deinstallation is much faster now. Of course, I cannot make compilation of packages faster, but other operations are optimized.
The user can abort the installation. He/she should still wait till a compilation of a current package is completed.
1) Installation may contain mandatory and optional packages.
Usually, optional packages require third-party components and are installed only if these third-party components are already installed.
Normally, errors of compilation of optional packages are ignored (because, most probably, the reason of these errors is missing third-party packages). If you have the necessary third-party components but the corresponding optional package cannot be installed, you can uncheck “Ignore errors for optional packages” in the Options dialog,
2) By default, only errors of compilation of packages for Windows platform are reported by the installer.
Most probably, errors when compiling packages for other platforms happen because this platform is not installed or is not configured in RAD Studio.
But if a package compilation of some non-Windows platform fails and you want to know why, uncheck “Ignore errors for non-Windows platform” in the Options dialog.
This installation utility is available for other component developers free of charge, with source code, under MPL Version 1.1.
Contact me if you are interested.
Turkish translation of user interface of RichViewActions and ScaleRichView is updated, thanks to Ertan Küçükoglu.
